SNU Haedong Idea Factory

CUBICON

• Printing Technology: FFF type (Fused Filament Fabrication type)

  Build Volume: W220 x D220 x H220 mm

  Layer Height Setting: 100-300 um (minimum 100 um)

  Build Speed: up to 150 mm/sec

  Filament Diameter: 1.75 mm

  Filament Types: ABS, ABS-A100 (low-shrinkage ABS), PLA Plus, PLA-i21, PETG, TPU (Flexible), etc.

  Positioning Accuracy: XY 3.125 um, Z 1.25 um

  Nozzle Diameter: 0.4 mm

  Nozzle Temperature: up to 260 °C

  Heated Bed Temperature: up to 120 °C

  Certifications: KC, FCC, CE

CUBICON

• Printing Technology: FFF type (Fused Filament Fabrication type)

  Build Volume: 310 x 310 x 310 mm

  Layer Height Setting: 100-300 um

  Build Speed: up to 150 mm/sec

  Filament Diameter: 1.75 mm

  Filament Types: ABS, ABS-A100 (low-shrinkage ABS), PLA Plus, PLA-i21, PETG, TPU PETG, TPU (Flexible), etc.

  Positioning Accuracy: 3.125 / 1.25 um

  Nozzle Diameter: 0.4 mm

  Nozzle Temperature: up to 260 °C

  Heated Bed Temperature: up to 120 °C

  Certifications: KC, FCC, CE

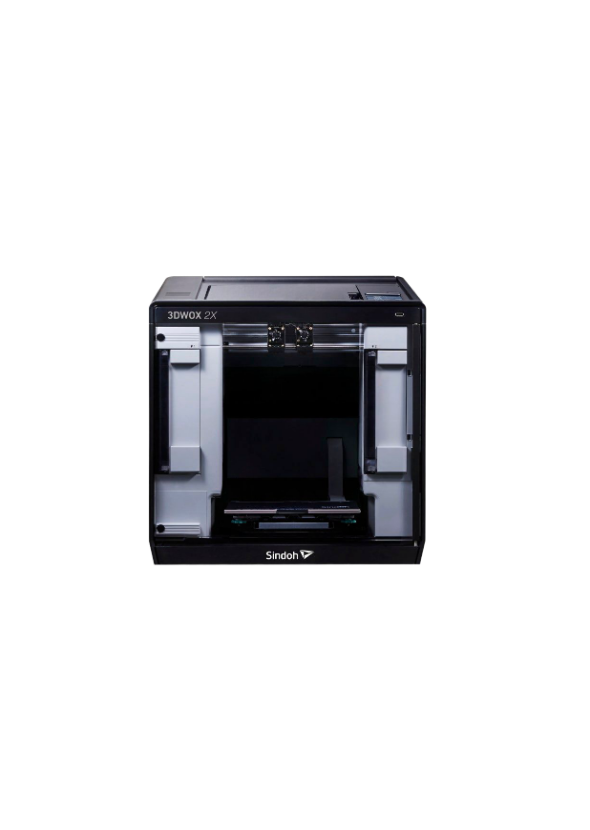

Sindoh

• Build Volume (W x D x H):
  Nozzle 1: 228 x 200 x 300 mm
  Nozzle 2: 225 x 200 x 300 mm

  Layer Thickness: 0.05 ~ 0.4 mm

  Nozzle: Single Nozzle

  Nozzle Diameter: 0.4 mm

Cubicon

• Maximum Print Speed: 500 mm/s (comparable to Bambu Lab X1)

  High-speed Extruder:
  A high-temperature heater and high-capacity drive gear enable stable filament extrusion during high-speed operation.

  Vibration Reduction Technology:
  Input Shaping minimizes ghosting and vibration during high-speed printing.

  Build and Hardware Specifications

  Build Volume: 250 x 250 x 250 mm

  Equipment Size and Weight: 480 x 480 x 505 mm / approx. 20 kg

  Bed Type: removable magnetic PEI

  Dedicated Software: OrcaForCubicon (Windows, macOS supported)

BambuLab

• Print Performance (Speed and Precision)

  Maximum Acceleration: 20,000 mm/s2

  Maximum Print Speed: 500 mm/s

  Extruder: all-metal direct drive

  Nozzle Temperature:
  up to 300 °C (supports engineering materials such as PA, PC, and carbon fiber)

  Hardware and Build Volume

  Print Size: 256 x 256 x 256 mm

  Bed Temperature: up to 110 °C / 120 °C (depending on voltage)

  Default Nozzle: 0.4 mm hardened steel nozzle included

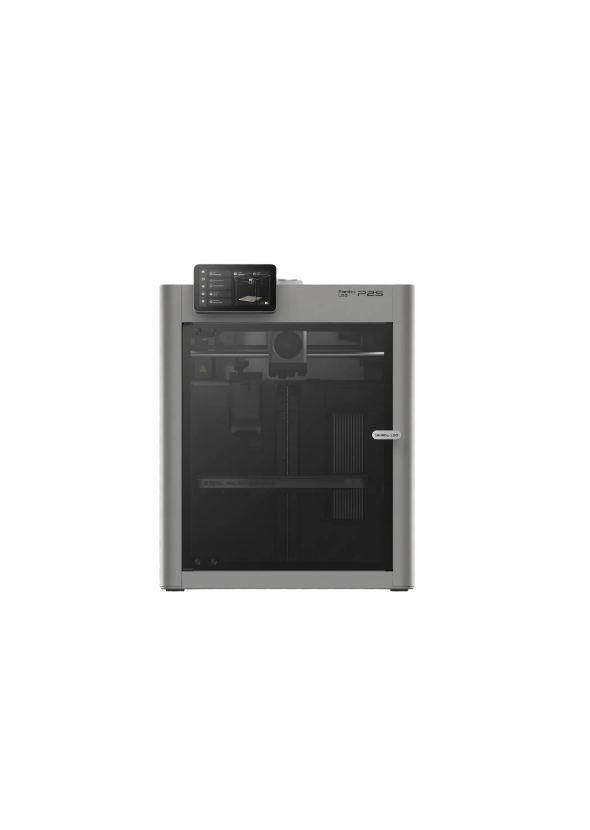

BambuLab

• Hardware and Build Volume

  Build Volume: 256*256*256mm

  Default Nozzle: 0.4mm Hardened Steel pre-installed

  Layer Height: 0.05 ~ 0.4 mm



Trotec

• Available after prior consultation with the administrator.

  High-productivity engraving machine

  Combining the reliability of InPack technology with fast engraving speed, the Speedy 300 delivers excellent performance in a compact design.

  Work Area (W x D): 726 x 432 mm

  CO2 Laser Power: 50 W, 80 W, 120 W

  Fiber Laser Power: 30 W

  Maximum Engraving Speed: 3.55 m/s

  Operating Modes: optimized modes including Raster, Vector, and Combined

SHINING 3D

• **This equipment can only be used inside Idea Factory. Off-site removal is prohibited.**
